Precut Discs & Dots Tapes
Kapton Tape Discs
Small precut tapes, mainly used to cover certain areas on a circuit board.
Precut Discs & Dots Tapes

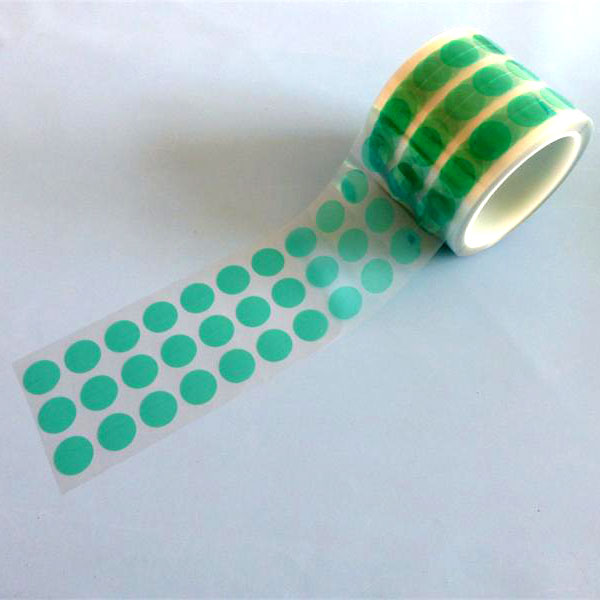

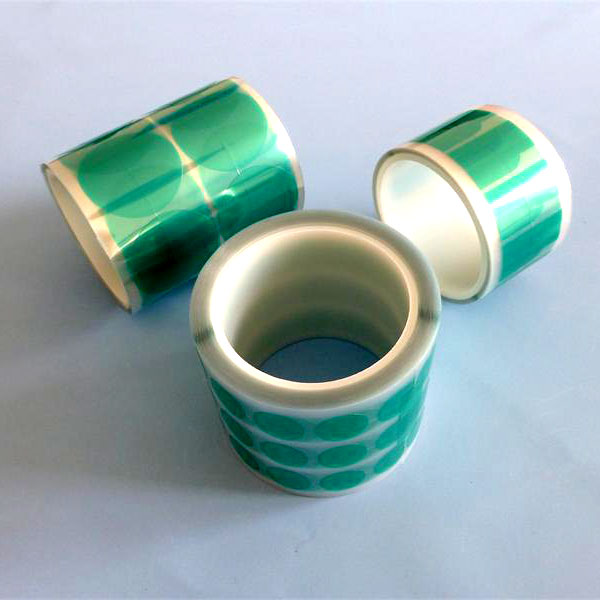

Green Masking Disc Tapes
Polyester film backing, 2 mil thick, with a 1.5 mil silicone-based adhesive, mounted on a clear slit back liner. Also called Powder Coating Masking Disc Tapes. Supplied on a 3-inch core.
Temperature range
FromAmbientMaximum204°C
-280°C0°C380°C
Key features
- Removes easily with no residue
- Economical
- Clear slit back liner
- Heat resistance up to 204°C (400°F)
Applications
- Plating and powder coating
- Anodizing and soldering
- Photo splicing
Technical specifications
| Backing | 2 mil polyester film |
|---|---|
| Adhesive | 1.5 mil silicone |
| Core | 3 inch |
| Max temperature | 204°C (400°F) |
